BakPak Bed Rack System, JT Gladiator

ARS Jeep JT Gladiator BakPak Bed Rack System is a modular design that supports top loads like roof top tents and side gear for your overlanding adventure.

Features Include:
  • 2” x .120 Wall Steel Tubing
  • Solid Billet Shelf Lock Attachment
  • CNC Clamps
  • Built in 1/8” Molle Panels
  • Hi or Lo Roof Top Tent Cross Beams
  • Secure 1/4" Steel Bar Attachment in Gear Track
  • 400lbs Dynamic Weight
  • Bed-Side Strength/600lbs (Static)
  • All Necessary Mounting Hardware Included
  • Easy "Bolt Together" Design
  • Finished in Black Texture Powder Coat
  • Quick & Easy Installation
  • Made in the USA
The ARS JT Gladiator BakPak Bed Rack System works with the factory trail rail cargo tracks and is designed specifically for [click for more...] your jeeping adventures. Bring the gear you need like a rooftop-tent, bikes, kayaks, or other accessories and keep them secured to your Jeep in even the most adverse conditions

The 2” steel tube bed rails provide rigid attachment to the bedside and OverCab Rear Hoop to distribute the load on the bed. The strong 2” OD steel tube bed rails are complimented with huge CNC steel billet clamps that attach firmly to the rear hoop with a combined clamping force of over 1,600lbs. The rails connect the front and rear rail assembly together with solid billet, overlapping Shelf-Locks and secure into place using industrial grade corrosion resistant hardware. The Billet Shelf Lock connectors are fully welded into the tubes for incredible strength and help facilitate ease of assembly.

The BakPak Bed Rack is accessory ready; the rack comes with built in Molle panels to provide additional mounting options and the rack rails allow you to mount any of the ARS rack accessories that fit a 2” tube.

Mount your roof top tent or accessories securely to your bed rack with the optional cross beams. Choose between the Hi-Rise cross beams that provide additional bed clearance or select the lo-pro cross beams to have your roof top tent rest on top of the bed rack rails to help distribute the weight load. Both cross beams utilizes CAD formed and laser cut 1/8” steel channel welded to 2” diameter billet clamps that attaches firmly providing a combined clamping force of over 3,200lbs to the Rocklander Roof Trusses.

The cross-beams comes with a multitude of slotted holes on the steel channels to mount most roof top tents or accessories. The cross-beams are finished in a durable black texture powder coat to protect them against the elements and to keep them looking good.

Note: The JT Gladiator truck must have the factory trail rail system on the vehicle to mount the BakPak Bed Rack System.

Note: The Rear OverCab Hoop is required for the BakPak Bed Rack System.

[click for less...]


Price As Configured:

$879.00

Customize BakPak Bed Rack System, JT Gladiator
Base Option   + $879.00

* Required Fields

Bread Checkout


VIDEOS

Jeep Adventure Rack Systems

Who is ARS?

ARS is dedicated to overland cargo management for Jeeps and other adventure vehicles. All of our products are made right here in the USA

Black Powdercoat

MetalCloak's premium black textured powder coat process is detailed in this updated video.

THE TECH

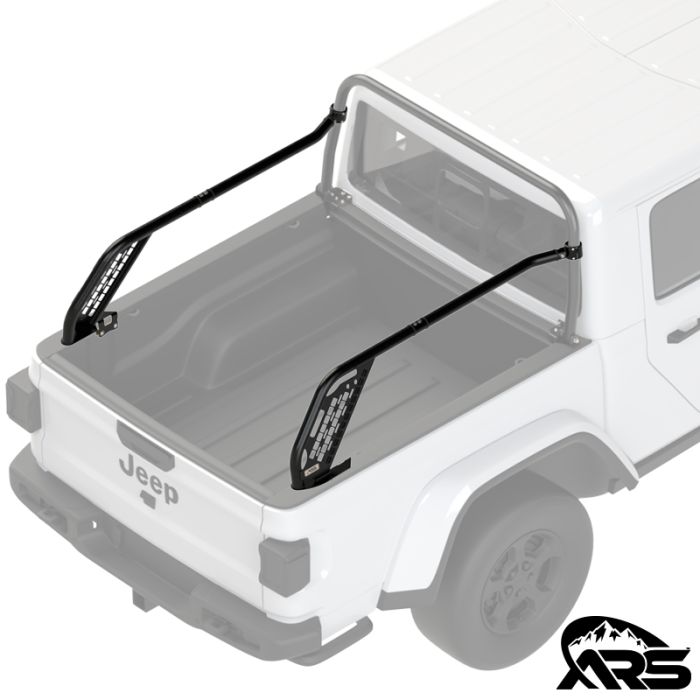

JT Gladiator BakPak Bed Rack System

JT Gladiator Bed Rack Mid Risers

ARS has created a structure to safely handle additional cargo loads for your Jeep JT Gladiator. The BakPak Bed Rack is a modular design that supports top loads like roof top tents and side gear for your overlanding adventure. Bring the gear you need like a rooftop-tent, bikes, kayaks, or other accessories and keep them secured to your Jeep.

Tube Diameter - Size Matters

ARS uses 2" diameter tube for maximum strength. Just a simple visual comparison shows the material used for ARS components far surpasses inferior brands.

ARS Rack System Tube Size Typical Tube Rack Tube Size Gobi

Billet Shelf-Lock

Billet Shelf-Lock connections allow for ease of installation and increased functionality.

The bed rails connects the rear and front assemblies together with solid billet, overlapping Shelf-Locks and secure into place using industrial grade corrosion resistant hardware.

The Billet Shelf Lock connectors are fully welded into the tubes for incredible strength and help facilitate ease of assembly.

ARS Bed Rack Billet Lock Gif Billet Shelf Lock Locations

Adaptable System

JT Gladiator Adjustable System

The ARS JT Gladiator BakPak Bed Rack is an adaptable system designed specifically for the gear you need, like a rooftop-tent, bikes, kayaks, recovery gear, or other accessories. ARS is adaptable to keep whatever it is secured to your Jeep in even the most adverse conditions and allows for any of the ARS two inch tube accessories to be mounted.

Bed Side Strength

The ARS JT Gladiator BakPak Bed Rack work with the factory Trail Rail Cargo Tracks and is designed specifically for your jeeping adventures. The JT Gladiator BakPak Bed Rack has one of the highest rated dynamic load ratings available providing a rated bed side strength of 600lbs.

JT Gladiator Bed Side Strength

Optional Roof Top Cross Beams

Mount your roof top tent or accessories securely to your BakPak Bed Rack. The cross beam kit comes with a multitude of slotted holes on the steel channels to mount most roof top tents or accessories.


JT Gladiator Lo-Pro Roof Top Tent Cross Beams JT Gladiator Hi-Rise Roof Top Tent Cross Beams

Cross Beam Clearance

Choose between the Hi-Rise Cross Beams that provide additional bed clearance or select the Lo-Pro Cross Beams to get your gear as low as possible; the choice of Beams put the weight of your accessory choices where you want and help distribute the weight loads to your preference.

ARS Mid Riser Dimensions

Required Rear OverCab Hoop

ARS JT Gladiator Rear OverCab Hoop

The rear hoop is made of strong 2" x .120 wall steel tube and mounts directly to the bed that is already reinforced by the factory; this provide the strongest attachment point. The addition of this hoop adds protection to the rear of the Jeep JT Gladiator cab also. The rear hoop is black powdercoated to protect the hoop from the elements.

The Rear OverCab Hoop Is Required for the BakPak Bed Rack System

*Picture shows Rear OverCab Hoop with OverCab Rack (R74020*)

What's In The Kit?

  • BakPak Forward Assembly
  • BakPak Rear Assembly
  • Billet Cage End Clamps
  • All Required Hardware
Whats in the Kit

TECHNICAL SPECIFICATIONS



Items Details
Compatibility 2019 + JT Gladiator
Bed Pak Front Assembly 2.0" OD x .120 Wall Steel Tube
Bed Pak Rear Assembly 2.0" OD x .120 Wall Steel Tube
1/8" Hot Rolled Steel
3/16" Hot Rolled Steel
Billet Clamps 3.0" OD x .50 Billet Steel
Coating Black Powder Coat


IMPORTANT NOTES



Trail Rail System: The JT Gladiator truck must have the factory trail rail system on the vehicle to mount the BakPak Bed Rack System.

Requirements: The Rear OverCab Hoop is required for the BakPak Bed Rack System.

INSTALLATION



Installation Difficulty Easy
Body Modification None
Time to Install 1 - 2 Hours
Installation Instructions Click Here to see a full list of ARS Installation Instructions.
