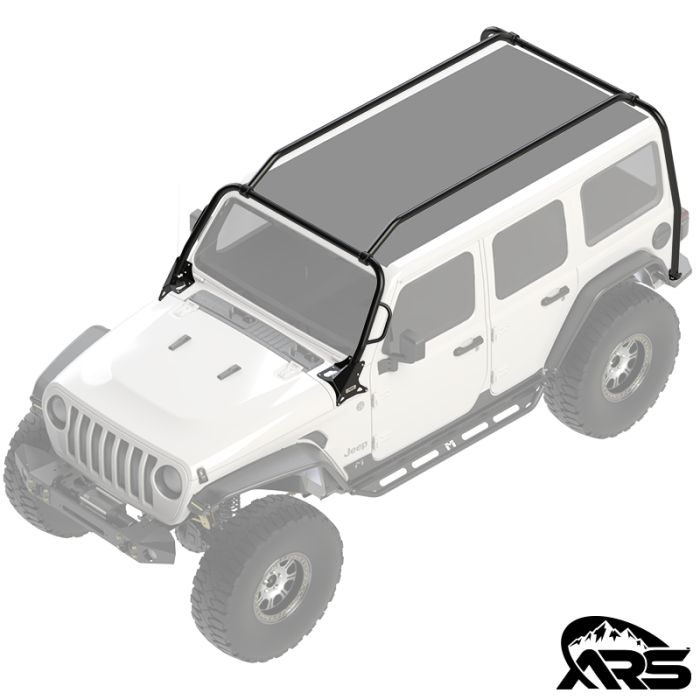

4-Door Rocklander Sky One-Touch Top Rack System | JL Wrangler
The 4-Door Rocklander Sky One-Touch Top Rack System is the most capable carrying system available for the Jeep JL Wrangler. It features the highest payload, strength, rigidity, and stability of any rack on the market, and allows for full use of your Sky One-Touch Top.
Features Include:- Allows for Sky One-Touch Top Use
- Bolts Directly to Factory Locations
- Heavy Duty 2" Tubular Exo-Skeleton Rack System
- 850lbs (Static) & 375lbs (Dynamic) Load Capacity
- One Piece Front Hoop Design
- Front Hoop Weld on Grab Handles
- Front Steel Pier Plates
- Integrated Fastener System
- Three Piece Design Rear Hoop
- Rear Steel Flexural Footings
- Two Piece NVH Hi-Durometer Urethane Bushings
- 3/16" Steel Base Anchors
- 4-Door Sky One-Touch Top Roof Trusses
- CNC Clamps with Threaded Bolt Holes
- Specific Engineered Tube Bend for a Stronger Front Support Structure
- Industrial Grade Corrosion Resistant Hardware
- Protection for Windshield Assembly
- Protection for the Rear Corners
- Accessories Mount Directly to Rack System
- Front Hoop Mount Ready for ARS Kat Walk
- Finished in Black Texture Powdercoat
- Made in the USA
ARS is the only rack that features a "load bearing" front hoop without the need for additional support; this strength is the bedrock that allows our rack systems to withstand fore and aft thrust, side load forces, and prevents horizontal racking (the twisting/flexing out of a rigid or supportive state). The front hoop columns are attached with 3/16" steel pier-plates that connect to 16 strong mounting points along with 2 additional fasteners at the front assembly of the Jeep body, then the pier plates are discretely covered with the factory cowl for a clean OE look.
The rear hoop columns are attached with our 3/16" steel base anchors and flexural footings, that create an understructure connecting the frame of the Jeep to the hoop for the strongest attachment point. The flexural footings coupled to our 2” OD steel support columns through 2-part urethane bushings, providing flexural rigidity between the frame and body mounts that allow the front and rear foundations to work in unison to support the cargo structure.
The Sky One-Touch Top Rocklander roof trusses allow for the usage of your Sky One-Touch Top usage and are made of strong 2” diameter, .120 steel tube and have engineered front bends creating a stronger and sturdier support when out on the trails or on the road. This Rack system boasts a 375lbs (dynamic) and 850lbs (static) weight capacity.
The trusses are equipped with CNC steel billet clamps that are secured to the front and rear hoop mounts with corrosion resistant hardware. The trusses are finished in a durable black texture powdercoat to protect them against the elements and to keep them looking good.
Note: Adding racks and/or accessories to the exterior of your vehicle may increase wind noise especially on models with soft-tops, Sky One-Touch Tops, etc.
Note: Does NOT fit on a JL 392 due to a taller cowl/hood.
Note: Does NOT fit on a JL 4XE due to the charging port location.
Note: The front hoop Kat Walk (R75080) is sold separately.
Note: The pod light mounts (R75011 / R75012) are sold separately.
Note: The Roof Pak Basket will NOT work on Sky One-Touch Top equipped Jeeps.
[click for less...]
VIDEOS
Jeep Adventure Rack Systems
Who is ARS?
ARS is dedicated to overland cargo management for Jeeps and other adventure vehicles. All of our products are made right here in the USA
JL Adventure Rack Systems
The ARS 4-Door Rocklander Sky One-Touch Top Rack System for the JL Wrangler Features the best in strength, rigidity, and stability all in one package.
Black Powdercoat
MetalCloak's Premium Black Textured Powdercoat process is detailed in this updated video.
THE TECH
JL Wrangler 4-Door Rocklander Sky One-Touch Top Rack System
ARS has created a structure to safely handle additional cargo loads for your Jeep. Our rack systems are built on a unique floating foundation that separates and distributes weight to the body AND to the frame maximizing structure and support.
Rocklander Front Hoop
ARS is the only rack that features a "load bearing" front hoop without the need for additional support; this strength is the bedrock that allows our rack systems to withstand fore and aft thrust, side load forces, and prevents horizontal racking (the twisting/flexing out of a rigid or supportive state).
Integrated Weld-On Handles
The Rocklander Front Hoop has welded-on 1" x .120 wall steel tube handles that let you get up and into your Jeep and also provide easy access to the optional Kat Walk accessory or roof rack.
Steel Pier Plates
The Front Hoop Columns are attached with 3/16" Steel Pier-Plates that connect to 16 strong mounting points along with 2 additional fasteners at the front assembly of the Jeep body, then the pier plates are discretely covered with the factory cowl for a clean OE look.
Rocklander Rear Hoop
The Rocklander Rear Hoop fits a 2-Door or 4-Door JL Wrangler. The rear hoop is made of strong 2" x .120 wall steel tube and mounts directly to the frame while adding protection for the rear corners of the Jeep JL Wrangler. The rear hoop is black powdercoated to protect the hoop from the elements and does not require any drilling or body modifications.
Billet Shelf-Lock
Billet Shelf-Lock connections allow for ease of installation and increased functionality.
The rear hoop connects the rear uprights together with solid billet, overlapping Shelf-Locks and secure into place using industrial grade corrosion resistant hardware.
The Billet Shelf Lock connectors are fully welded into the tubes for incredible strength and help facilitate ease of assembly.
Rear Hoop Adapter Brackets
The Rear hoop columns are attached with our 3/16" steel base anchors and Flexural Footings, that create an understructure connecting the frame of the Jeep to the hoop for the strongest attachment point.
Noise Vibration Dampening Bushings
The Flexural Footings coupled to our 2”OD steel support columns through 2-part Urethane bushings, providing flexural rigidity between the frame and body mounts that allow the front and rear foundations to work in unison to support the cargo structure.
4-Door Roof Trusses
The Jeep Wrangler JLU Sky One-Touch Top Rocklander Roof Trusses are a critical part of the ARS cargo system. The roof trusses are made solid with 2"OD steel tubing that connect with the front and rear hoop columns with additional height for the Sky One-Touch Top, and create the most stable cargo management system available. ARS Roof Trusses are finished in a durable black texture powder coat that protect against the elements and to keep them looking good.
Engineered Bend
To maximize load strength, ARS Roof Trusses are designed with a forward slope that reduce push/load forces on the front body mounted hoop columns.
CNC Billet Clamps
The strong 2” OD steel tube Roof trusses are complimented with huge CNC steel billet clamps that attach firmly with a combined clamping force of over 3,200lbs to the front and Rear hoop columns.
Tube Diameter - Size Matters
Weight Capacity
Optional MetalCloak Rear Bumper & Bracket Upgrade Kit
The MetalCloak Bumper for the Jeep Wrangler is a perfect mix of function and utility. The strong 3/16" structure is built tough and has a low profile, close fitting design that allows for increased departure clearance without skimping on utility features like welded recovery points, works with factory tow hitch, protected electrical outlet, and modular wrap around corner end caps. The MetalCloak Rear Bumper Upgrade Kit also includes the rear hoop bracket system. Click Here to Learn More About the MetalCloak Rear Bumper.
Optional Front Hoop Kat Walk
The JL Wrangler Jeep Kat Walk is a non-slip step platform that provides easy access to the top of the Jeep. The ARS Kat Walk is a bolt-on accessory that spans the windshield/hood area of JK that attaches to front hoop and is rated for 300lbs.
The Front Hoop Kat Walk is sold separately.
Optional Mounting Pod Lights
Pick Your Bumper
What's In The Kit?
- Front Hoop
- Pier Plates
- Roof Trusses
- Rear Hoop
- Frame Mount Brackets
- Flexural Footings
- NVH Urethane Bushings
- All Required Hardware
TECHNICAL SPECIFICATIONS
| Items | Details |
|---|---|
| Compatibility | 2018 + 4-Door Sky One-Touch Top JL Wrangler |
| Front Hoop | 2" X .120 Wall Steel Tube |
| Integrated Handle | 1" X .120 Wall Steel Tube |
| Roof Trusses | 2" X .120 Wall Steel Tube |
| Clamps | 3" x .50 Wall Mild Carbon Steel |
| Rear Hoop | 2" X .120 Wall Steel Tube |
| Frame Mount Brackets | 1/4" Hot Rolled Steel |
| Bushings | Hi-Durometer Urethane Bushings |
| Steel Coating | Black Powdercoat
Gold Zinc - Mounting Brackets |
IMPORTANT NOTES
Roof Pac Basket: The Roof Pak Basket will NOT work on Sky-Top equipped Jeeps.
Wind Noise: Adding racks and/or accessories to the exterior of your vehicle may increase wind noise especially on models with soft-tops, sky-tops, etc.
Model: Does NOT fit on a JL 392 due to a taller cowl/hood and does NOT fit on a JL 4XE due to the charge port location.
Kat Walk: The front hoop Kat Walk (R75080) is sold separately.
Pod Light Mounts The pod light mounts (R75011 / R75012) are sold separately.
INSTALLATION
| Installation Difficulty | Easy |
| Body Modification | Some Cutting |
| Time to Install | 3 - 4 Hours |
| Installation Instructions | Click Here to see a full list of ARS Installation Instructions. |
